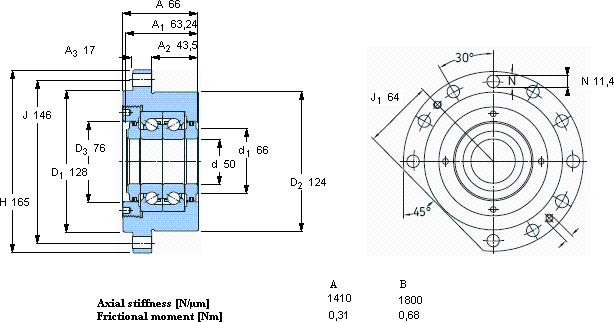

SKFFBSA 210/ DF參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 50 | 124 | 66 | 46,5 | 146 | 5,4 | 4800 | 2400 | 5,7 | FBSA 210/ DF | BSDU 250 FF | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 210/ DF屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：50，外徑：124，厚度66，SKFFBSA 210/ DF主要應用于輸送等機械上、等領域。如果您需要購買或者了解更多關于SKFFBSA 210/ DF的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 210/ DF近似型號
- SKF NU 2210 ECJ * 尺寸：50mm × 90 × 23 類型：圓柱滾子軸承 備注：單列
- SKF 6210-2RS1/W64 * 尺寸：50mm × 90 × 20 類型：工程產品 備注：深溝球軸承, 單列, 含Solid Oil
- SKF PCM 101210 M 尺寸：10mm × 12 × 10 類型：復合干式滑動軸套 備注：帶公制尺寸
- SKF C 2210 KV + H 310 E * 尺寸：45mm × 90 × 23 類型：CARB?圓環滾子軸承 備注：帶緊定套的
- SKF 5210 A-2RS1 * 尺寸：50mm × 90 × 30.2 類型：角接觸球軸承 備注：雙列
- SKF FBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF YAR 210-2FW/VA228 尺寸：50mm × 90 × 51.6 類型：工程產品 備注：Y-軸承, 用于高溫
- SKF YHC 210-108-2LS8W/VT357 尺寸：38.1mm × 90 × 30 類型：Y-軸承 備注：帶六角或方形孔
- SKF C 2210 KV + AHX 310 * 尺寸：45mm × 90 × 23 類型：CARB?圓環滾子軸承 備注：帶退卸套的
- SKF 62210-2RS1 尺寸：50mm × 90 × 23 類型：深溝球軸承 備注：單列
- SKFFBSA 210/ DF相關型號
- SKFFBSA 210/ DB 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QFC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 205/ DB 尺寸：25mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QBC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QBC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DF 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF推薦型號
- KOYO 618/3 尺寸：3mm × 7 × 2 類型：
- BARDEN 7213AC/DF 尺寸：65mm × 120 × 46 類型：
- DKF 7226AC/DF 尺寸：130mm × 230 × 80 類型：
- SKF 51196 尺寸：480mm × 580 × 80 類型：
- NTN NN3076K 尺寸：380mm × 560 × 135 類型：
- SKF NNU4940/W33 尺寸：200mm × 280 × 80 類型：
- MRC NU213 尺寸：65mm × 120 × 23 類型：
- NTN NJ418 尺寸：90mm × 225 × 54 類型：
- RIV N2326 尺寸：130mm × 280 × 93 類型：
- NTN NJ314E+HJ314E 尺寸：70mm × 150 × 35 類型：
