SKFFBSA 204/ QBC參數

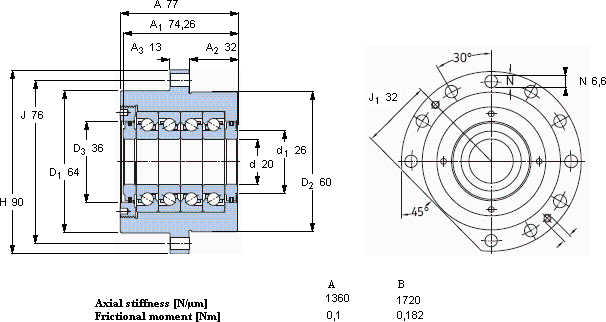

| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 20 | 60 | 77 | 35,86 | 98 | 3,6 | 4750 | 2375 | 1,7 | FBSA 204/ QBC | BSQU 220 TDT | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 204/ QBC屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：20，外徑：60，厚度77，SKFFBSA 204/ QBC主要應用于碾煤機、等領域。如果您需要購買或者了解更多關于SKFFBSA 204/ QBC的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 204/ QBC近似型號
- SKF 32044 X 尺寸：220mm × 340 × 76 類型：圓錐滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF YAR 204-2RF/VE495 尺寸：20mm × 47 × 31 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF BSD 2047 CG 尺寸：20mm × 47 × 15 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, single direction
- SKF 32044T165 X/DB11C170 尺寸：220mm × 340 × 165 類型：圓錐滾子軸承 備注：?jiǎn)瘟?，背?duì)背配對
- SKF 2 x 7204 BEGBP * 尺寸：20mm × 47 × 28 類型：角接觸球軸承 備注：?jiǎn)瘟?，用于配?duì)安裝
- SKF 7204 BECBP * 尺寸：20mm × 47 × 14 類型：角接觸球軸承 備注：?jiǎn)瘟?/dd>
- SKF RNU 204 ECP 尺寸：26.5mm × 47 × 14 類型：圓柱滾子軸承 備注：?jiǎn)瘟? 無內圈
- SKF 2 x 7204 BECBY 尺寸：20mm × 47 × 28 類型：角接觸球軸承 備注：?jiǎn)瘟校糜谂鋵?duì)安裝
- SKF CR 20428 尺寸：51.994mm × 67.996 × 13.005 類型：徑向軸密封件 備注：徑向軸密封件
- SKF 6204/HR11QN 尺寸：20mm × 47 × 14 類型：工程產品 備注：聚合物球軸承,單列球軸承
- SKFFBSA 204/ QBC相關型號
- SKFFBSA 207/ QFC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QFC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ DF 尺寸：40mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208 A/ QBC 尺寸：40mm × 128 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 208/ QFC 尺寸：40mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ QBC 尺寸：30mm × 80 × 84 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 210/ DF 尺寸：50mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DB 尺寸：35mm × 90 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC推薦型號
- FAFNIR 61903 尺寸：17mm × 30 × 7 類型：
- KOYO 7013C 尺寸：65mm × 100 × 18 類型：
- SKF NK16/16 尺寸：12mm × 24 × 16 類型：
- STEYR 1212K+H212 尺寸：60mm × 120 × 23 類型：
- STEYR 54408U 尺寸：40mm × 95 × 77 類型：
- SNR 32203 尺寸：17mm × 40 × 16 類型：
- MRC NU1015 尺寸：75mm × 115 × 20 類型：
- NTN UCFU307 尺寸：35mm × 48 × 135 類型：
- SKF 6205-2ZNR 尺寸：25mm × 52 × 15 類型：
- SKF NU416 尺寸：80mm × 200 × 48 類型：
