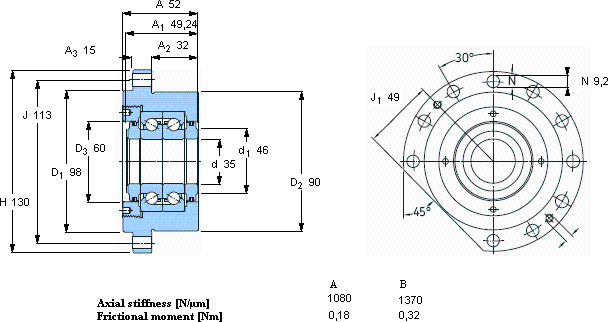

SKFFBSA 207/ DF參數
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
| mm | kN | kN | r/min | kg | - | ||||||
 | |||||||||||
| 35 | 90 | 52 | 36,5 | 98 | 3,65 | 5600 | 2800 | 3,2 | FBSA 207/ DF | BSDU 235 FF | |
SKFAngular contact thrust ball bearings for screw drivesFBSA 207/ DF屬于超高精密軸承，它是角接觸推力球軸承 for screw drives, cartridge units with flanged housing的Angular contact thrust ball bearings for screw drives，內徑：35，外徑：90，厚度52，SKFFBSA 207/ DF主要應用于擠壓機、等領域。如果您需要購買或者了解更多關于SKFFBSA 207/ DF的信息， 歡迎撥打訂購熱線：022-27921004
- SKFFBSA 207/ DF近似型號
- SKF YAT 207-107 尺寸：36.513mm × 72 × 35 類型：Y-軸承 備注：帶平頭螺釘鎖定的
- SKF FBSA 207/ QFC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF NUP 207 ECJ * 尺寸：35mm × 72 × 17 類型：圓柱滾子軸承 備注：?jiǎn)瘟?/dd>
- SKF YEL 207-104-2FCW 尺寸：31.75mm × 72 × 19 類型：Y-軸承 備注：帶偏心鎖定環的
- SKF CR 20749 尺寸：52.4mm × 82.58 × 11.13 類型：徑向軸密封件 備注：徑向軸密封件
- SKF 207-ZNR 尺寸：35mm × 72 × 17 類型：深溝球軸承 備注：?jiǎn)瘟?，帶裝球缺口和止動環槽
- SKF 6324/C3VL2071 尺寸：120mm × 260 × 55 類型：工程產品 備注：深溝球軸承, 單列,INSOCOAT
- SKF 51207 V/HR11T1 尺寸：35mm × 62 × 18 類型：工程產品 備注：聚合物球軸承,推力球軸承
- SKF RNU 207 ECP * 尺寸：44mm × 72 × 17 類型：圓柱滾子軸承 備注：?jiǎn)瘟? 無內圈
- SKF PCM 11512070 E 尺寸：115mm × 120 × 70 類型：復合干式滑動軸套 備注：帶公制尺寸
- SKFFBSA 207/ DF相關型號
- SKFFBSA 205/ QFC 尺寸：25mm × 80 × 82 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ DF 尺寸：45mm × 124 × 66 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 209/ QBC 尺寸：45mm × 124 × 106 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DF 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ QBC 尺寸：35mm × 90 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206 A/ QFC 尺寸：30mm × 88 × 86 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 206/ DB 尺寸：30mm × 80 × 52 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QFC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 212 A/ QFC 尺寸：60mm × 145 × 114 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 204/ QBC 尺寸：20mm × 60 × 77 類型：Angular contact thrust ball bearings for screw drives 備注：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKFFBSA 207/ DF推薦型號
- NTN 135 尺寸：5mm × 19 × 6 類型：
- SNFA 7034C 尺寸：170mm × 260 × 42 類型：
- KOYO 7204C/DB 尺寸：20mm × 47 × 28 類型：
- NTN 7012C/DF 尺寸：60mm × 95 × 36 類型：
- RHP 7202B/DT 尺寸：15mm × 35 × 22 類型：
- SKF 234408B 尺寸：40mm × 68 × 36 類型：
- FYH UKFLU207+H2307 尺寸：30mm × 43 × 156 類型：
- SKF 210-2Z 尺寸：50mm × 90 × 20 類型：
- SKF 361206R 尺寸：30mm × 72 × 16 類型：
- SKF NUP2316ECP 尺寸：80mm × 170 × 58 類型：
